Photoelectric Sensor
OPU 202 Photoelectric Sensor
View the listed specifications below. Share your required quantity and application to confirm the right variant.
Previously listed at ₹20,000 / Piece. Confirm the current quote before ordering.
Specifications reproduced from our existing catalogue. Confirm material, model, operating conditions and availability before purchase.
| Brand | IFM Electronic |
|---|---|
| Sensing Mode | Fork Type |
| Sensing Range | 0-100 mm |
| Output Type | PNP |
| Supply Voltage | 10-30 V DC |
| Connection Type | M8 Connector |
| IP Rating | IP67 |
| Light Source | Red LED |
| Housing Material | Zinc Die-Cast |
| Housing Shape | U-Shape / Fork |
| Application | Conveyor Sensing, Metal Detection, Plastic Detection, Presence Sensing |
Product information

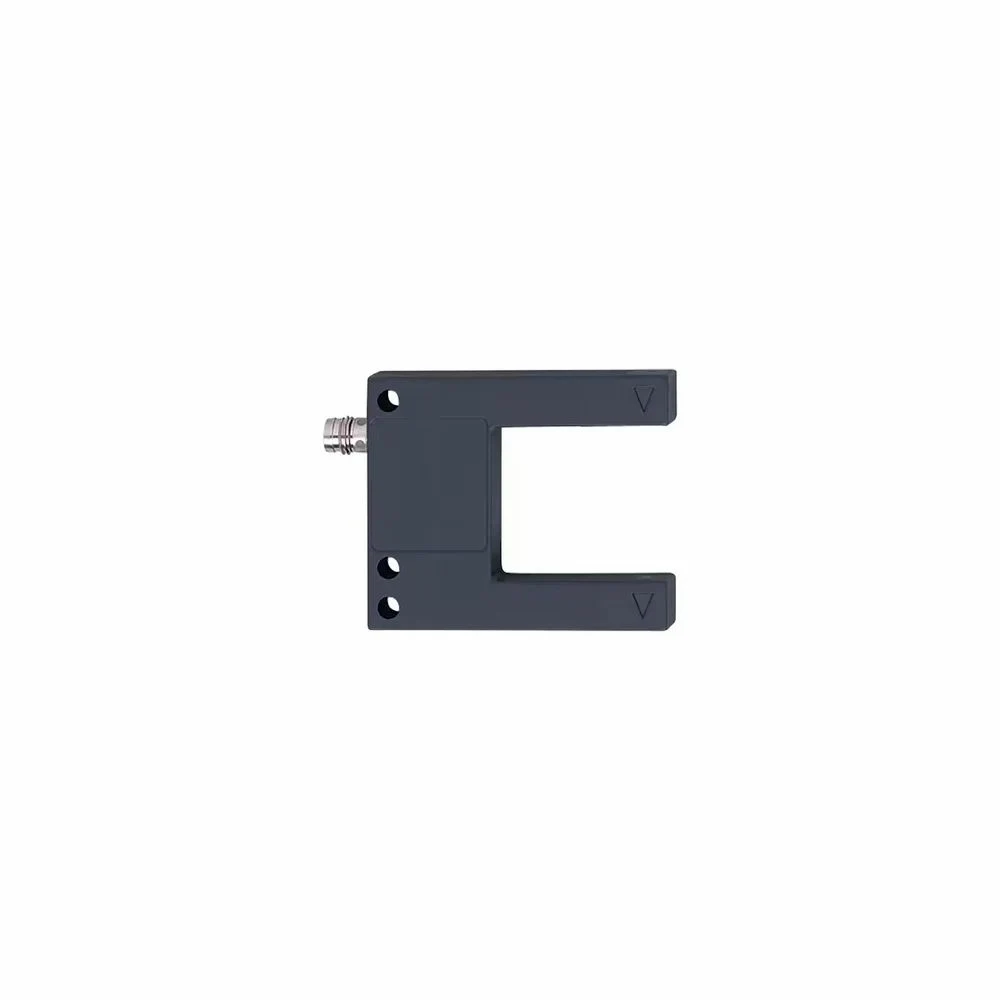

A photoelectric fork sensor (or slot sensor) is a U-shaped optical sensor with the light emitter and receiver built into opposite arms, creating a fixed light beam across the gap; it detects objects by sensing when something blocks this beam, making it ideal for high-speed, precise, non-contact detection of small parts, wires, or transparent films in automation, packaging, and assembly, with easy setup as no external alignment is needed and features like adjustable sensitivity and selectable light-on/dark-on modes.
Original listing & verification
Product information and photos have been retained from our existing catalogue. Some source listings contain inconsistent specification fields; please confirm the final specification with us.
