Industrial Valves

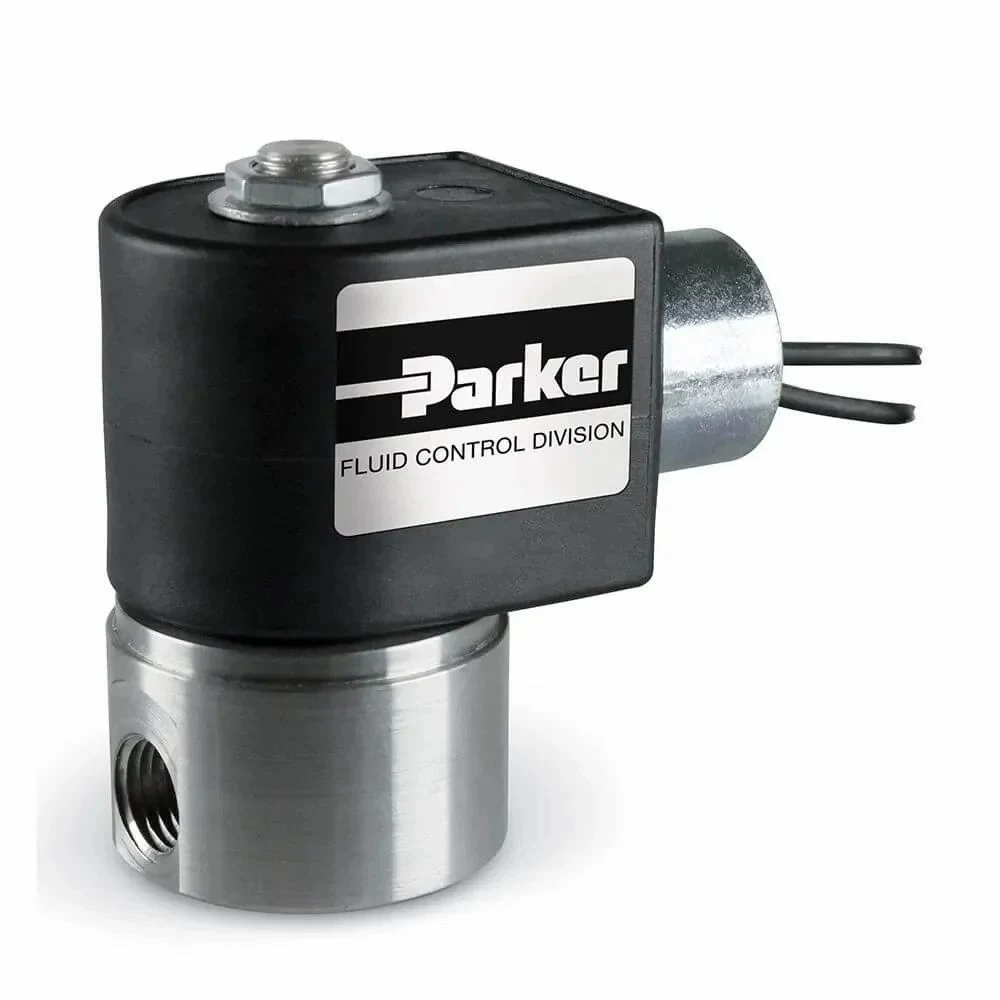

Parker Solenoid Valves
View the listed specifications below. Share your required quantity and application to confirm the right variant.
Previously listed at ₹15,000 / Piece. Confirm the current quote before ordering.
Specifications reproduced from our existing catalogue. Confirm material, model, operating conditions and availability before purchase.
| Series | 221 g |
|---|---|
| Valve Function | 2 Way |
| Medium | Air |
| Port Size | 1/2 inch |
| Operation Type | Pilot Operated |
| Body Material | Stainless Steel |
| Coil Voltage | 24 V DC |
| Approval | CE |
| Operation Mode | Normally Closed |
| Specification Attribute | Details / Value |
| Brand | Parker Lucifer |
| Model / Catalog No. | 221G6536 |
| Valve Type | 2-Way / 2 Port (2/2) |
| Valve Function | Normally Closed (NC) |
| Port Size / End Connection | 1/2" Female Thread (BSP) |
| Orifice Diameter | 16 mm |
| Maximum Operating Pressure | 10 bar |
| Minimum Operating Pressure | 0 bar |
| Body Material | AISI 316L Stainless Steel |
| Seal / Diaphragm Material | FKM (Viton) |
| Media / Application | Air, Water, Oil, Liquids, and Neutral Gases |
| Electrical Connection | Standard 3-Pin DIN Plug Coil |
| Flow Factor ($K_v$) | $3.9\text{ m}^3/\text{h}$ |
| Country of Origin | Made in Italy (Designed by Lucifer Switzerland) |
Product information
Key Features & Product Description
High Corrosion Resistance: Engineered with premium AISI 316L stainless steel body for high durability in aggressive fluid applications.
Low & High Pressure Performance: Operates smoothly across pressure ranges from 0 to 10 bar.
Versatile Compatibility: Compatible with standard 24V DC / 230V AC Parker Lucifer DIN plug coils.
Applications: Suitable for compressors, water purification systems, cooling loops, medical devices, lubrication systems, and beverage dispensing machines.
