electrical pole box

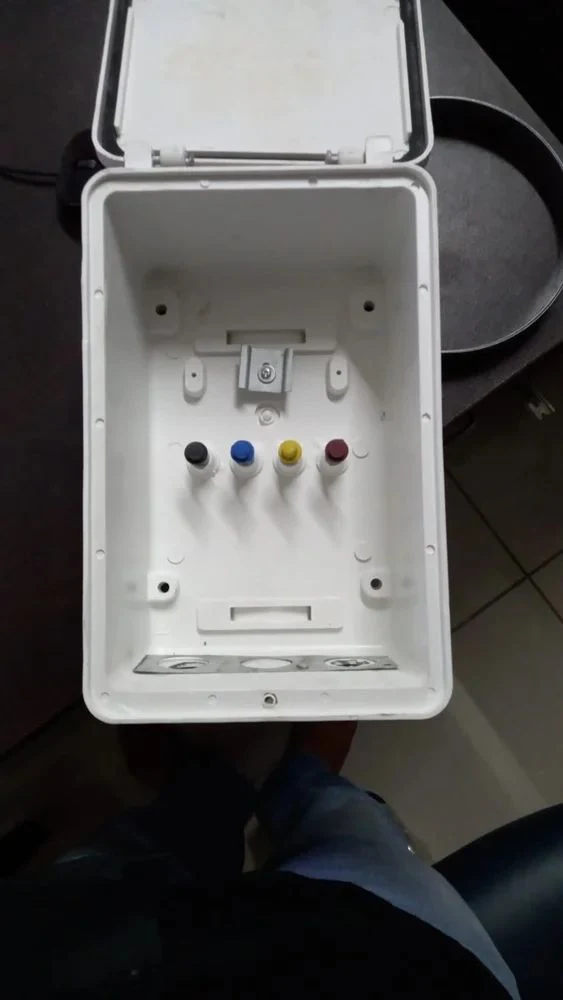

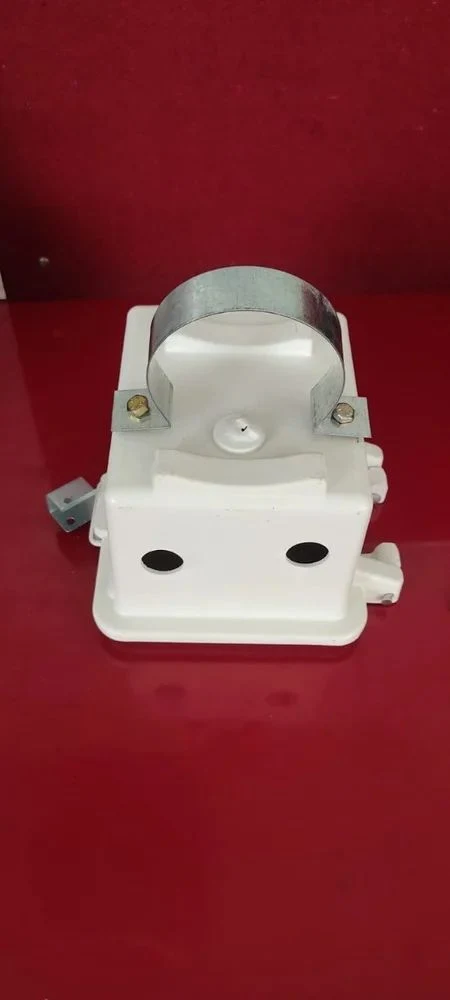

Electrical Pole Box
View the listed specifications below. Share your required quantity and application to confirm the right variant.
Previously listed at ₹200 / Piece. Confirm the current quote before ordering.
Specifications reproduced from our existing catalogue. Confirm material, model, operating conditions and availability before purchase.
| Minimum Order Quantity | 10 Piece |
|---|---|
| Application | Street Light Box |
| Enclosure Material | FRP |
| IP Rating | IP54 |
| Mounting Type | Pole Mount |
| Rated Voltage | 230 V |
| Door Type | Single Door |
| Cable Entry | Bottom Entry |
| Surface Finish | Matt Finish |
Product information
This Weatherproof FRP / SMC Electrical Enclosure Box is engineered for LT distribution, energy meter housing, and industrial control equipment. Manufactured from hot-press compression-moulded Sheet Moulding Compound (SMC) and Fiberglass Reinforced Polyester (FRP), it delivers high mechanical rigidity while remaining completely rust-proof and corrosion-free. The enclosure features an ingress protection rating of IP55 / IP65 for dust and moisture resistance, along with an IK10 impact resistance rating. With a dielectric strength exceeding 11 kV/mm, it provides a 100% non-conductive, shockproof barrier that ensures high operator and equipment safety.
Design, Mounting & Construction Details
Designed for outdoor and indoor utility deployment, the box supports both wall mounting and pole mounting configurations. The unit incorporates an integrated top weather canopy that diverts rainwater away from the door perimeter and internal wiring. It is built in UV-stabilized Off-White / Siemens Grey (RAL 7035) finish, equipped with heavy-duty stainless steel hinges, external padlock brackets for tamper prevention, bottom cable gland provisions, and a front-facing screen-printed Danger safety marking.
Thermal Performance & Applications
The housing is fire-retardant and self-extinguishing in compliance with UL 94 V-0 standards, with an operational temperature tolerance from -20°C to +120°C. Engineered to withstand coastal salinity, chemicals, and intense UV exposure, it is suited for single-phase and three-phase energy meters, MCB/MCCB power distribution, solar array junctions, and street lighting controls. Made in India.
Quick Technical Summary (Single Line Format)
Product Type: FRP/SMC Electrical Distribution & Meter Box | Material: Hot Pressed SMC / FRP Composite | Protection Class: IP55 / IP65, IK10 Impact Proof | Mounting: Wall / Pole Mountable | Insulation: Shock-Proof (>11 kV/mm) | Fire Rating: UL 94 V-0 Flame Retardant | Temperature Range: -20°C to +120°C | Hardware: Stainless Steel Hinges with Padlock Provision | Color: Off-White / RAL 7035 Grey | Origin: Made in India.
Additional Information:
Delivery Time: 1 week
